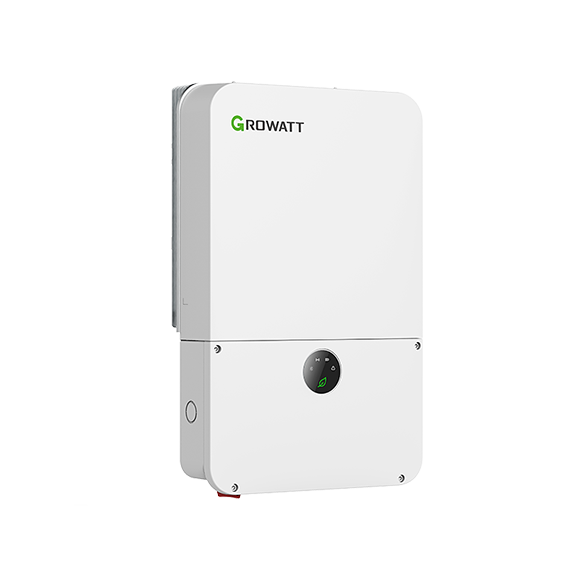

Home > Products > MIN 7600-11400TL-XH2 US
Key Features
- - Whole home backup with 20ms on/off-gird transfer time
- - Dark start operation
- - High-surge load support up to 185A LRA
- - DC/AC Ratio up to 2.0
- - Max 18A PV input current per MPPT
- - Max. efficiency 98%
- - Battery ready for DC Coupled and AC Coupled systems
- - Eligible for VPP incentives nationwide
- - Optional diesel generator to charge battery for optimal energy management
Improvement Compared with the MIN-XH Series
-Higher PV input current: up to 18A per MPPT, compatible with high-power PV modules -Higher short-circuit current: up to 25A per MPPT, enabling more flexible PV design -Faster backup transition: on/off-grid switchover time improved to ≤20ms -Stronger load starting: up to 185A LRA for demanding motor loads -Lower startup voltage: 50V PV startup voltage for earlier system activation
The Supportive device & platform
DOWNLOAD
Datasheet
Certificates
Manual & Quick Guide
